Glass Drilling Equipments

CNC Automatic Glass Drilling Machine for Automobile Glassy

CNC Automatic Glass Drilling Machine for Automobile Glassy

SBT-A4 CNC Glass Drilling Machine for Automobile Glass

Detail Information:

Glass thickness: 4-12mm



Hole diameter: Φ4 – φ50



Moving speed:XY 3-12m/min



X axis moving progress size: 0-1300mm



Y axis moving progress size: 0-1000mm



Concentricy tolerance:±0.3mm

CNC Automatic Glass Drilling Machine For Shower Door

CNC Automatic Glass Drilling Machine For Shower Door

SBT-A3 CNC Glass Drilling Machine For Shower Door

Detail Information:

Glass thickness: 4-12mm

Hole diameter: Φ4 – φ50

Moving speed:XY 3-12m/min

Max processing glass: 900*2100mm

Min processing glass: 300*1500mm

Concentricy tolerance:±0.3

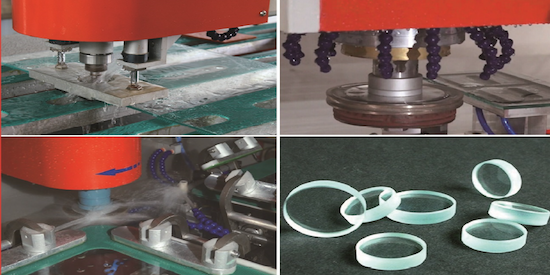

Our drilling glass machine features: High drilling efficiency, accurate positioning and ease of operation.



Our main glass drilling machines are applied to following areas:



NO.1:  CNC Drilling Machine for Electronic/Household Electrical Appliances Glass



NO.2:  CNC Drilling Machine for Furniture Glass



NO.3:  CNC Drilling Machine for Shower Room Glass



NO.4: CNC Drilling Machine for Automobile Glass



NO.5:  CNC Drilling Machine for Photovoltaic Solar Glass



NO.6:  CNC Drilling Machine for Architectural Glass



NO.7: Other Glass Deep-processing Equipment Which Product According to Order.



We sincerely welcome friends from all over the world, home or abroad, to visit our company, negotiate business with us and create a brilliant future together!

CNC Drilling Machine for Electronic / Household Electrical Appliances Glass

CNC Drilling Machine for Electronic / Household Electrical Appliances Glass

SBT-A15-3 CNC Drilling Machine for Electronic/Household Electrical Appliances Glass

Detail Information:

Glass thickness: 4-12mm

Hole diameter: Φ4 – φ50

Moving speed:XY 3-12m/min

X axis moving progress size: 0-800mm

Y axis moving progress size: 0-500mm

Concentricy tolerance:±0.2

Our drilling glass machine features: High drilling efficiency, accurate positioning and ease of operation.



Our main glass drilling machines are applied to following areas:



NO.1:  CNC Drilling Machine for Electronic/Household Electrical Appliances Glass



NO.2:  CNC Drilling Machine for Furniture Glass



NO.3:  CNC Drilling Machine for Shower Room Glass



NO.4: CNC Drilling Machine for Automobile Glass



NO.5:  CNC Drilling Machine for Photovoltaic Solar Glass



NO.6:  CNC Drilling Machine for Architectural Glass



NO.7: Other Glass Deep-processing Equipment Which Product According to Order.



We sincerely welcome friends from all over the world, home or abroad, to visit our company, negotiate business with us and create a brilliant future together!

CNC Drilling Machine for Furniture Glass

SBT-A2 CNC Drilling Machine for Furniture Glass

Detail Information:

Glass thickness: 4-12mm



Hole diameter: Φ4 – φ50



Moving speed:XY 3-12m/min



X1-X2  axis moving progress size: 300-2000mm



Y axis moving progress size: 0-1300mm



Concentricy tolerance:±0.2mm

Our drilling glass machine features: High drilling efficiency, accurate positioning and ease of operation.



Our main glass drilling machines are applied to following areas:



NO.1:  CNC Drilling Machine for Electronic/Household Electrical Appliances Glass



NO.2:  CNC Drilling Machine for Furniture Glass



NO.3:  CNC Drilling Machine for Shower Room Glass



NO.4: CNC Drilling Machine for Automobile Glass



NO.5:  CNC Drilling Machine for Photovoltaic Solar Glass



NO.6:  CNC Drilling Machine for Architectural Glass



NO.7: Other Glass Deep-processing Equipment Which Product According to Order.



We sincerely welcome friends from all over the world, home or abroad, to visit our company, negotiate business with us and create a brilliant future together!

CNC Drilling Machine for Photovoltaic Solar Glass

CNC Drilling Machine for Photovoltaic Solar Glass

SBT-A5 CNC Drilling Machine for Photovoltaic Solar Glass

Detail Information:

Glass thickness: 5-12mm



Hole diameter: Φ4 –  Φ30



Moving speed:XY 3-12m/min



X axis moving progress size: 0-2200mm



Y axis moving progress size: 0-900mm



Concentricy tolerance:±0.3mm



Our drilling glass machine features: High drilling efficiency, accurate positioning and ease of operation.



Our main glass drilling machines are applied to following areas:



NO.1:  CNC Drilling Machine for Electronic/Household Electrical Appliances Glass



NO.2:  CNC Drilling Machine for Furniture Glass



NO.3:  CNC Drilling Machine for Shower Room Glass



NO.4: CNC Drilling Machine for Automobile Glass



NO.5:  CNC Drilling Machine for Photovoltaic Solar Glass



NO.6:  CNC Drilling Machine for Architectural Glass



NO.7: Other Glass Deep-processing Equipment Which Product According to Order.

CNC Glass Corner Grinding Polishing Machine,CNC GLASS SAFETY CORNER EDGING MACHINE

CNC Glass Corner Grinding Polishing Machine,CNC GLASS SAFETY CORNER EDGING MACHINE

CNC Glass Corner Grinding Machine,CNC Glass Corner Chamfering Machine,CNC GLASS CORNER EDGING MACHINE



Glass CNC Corner Edging Machines:

Quality machines at an AFFORDABLE price, gives you the best value in the industry. Our heavy duty glass CNC corner edging machines are suitable to edge and polish corners of any glass or mirror products. The machines are designed considering the long term working period, with very user friendly operations and all come with a 1 year warranty.CNC Glass Safety Corner Grinding Machine,CNC Glass Safety Corner Edging Machine,CNC Glass Safety Corner Chamfering Machine,CNC Glass Round Corner Grinding Machine,CNC Glass Round Corner Edging Machine,CNC Glass Round Corner Chamfering Machine.

CNC Glass Corner Grinding Machine,CNC Glass Corner Chamfering Machine,CNC GLASS SAFETY CORNER EDGING MACHINE

Application:

For window and door glass, commerical glass, furniture glass, appliance glass, electronic balance glass, ect.

CNC Functions:

PC based numerical control, can edge/polish two corners at the same time, ideal for batch & scatter glass. The single spindle can handle both grinding and polishing operations. Easy to operate Windows interface.CNC Glass Safety Corner Grinding Machine,CNC Glass Safety Corner Edging Machine,CNC Glass Safety Corner Chamfering Machine,CNC Glass Round Corner Grinding Machine,CNC Glass Round Corner Edging Machine,CNC Glass Round Corner Chamfering Machine.

CNC Glass Corner Grinding Machine,CNC Glass Corner Chamfering Machine,CNC GLASS SAFETY CORNER EDGING MACHINE

Specifications:

* Spindle quantity: 1

* ABB german design spindle motors

* Glass thickness: 3mm - 12mm

* Min glass size: 600mm

* Max glass size: 1970mm

* Power: 220V or 480V 3phase 60hz

* Weight: 1500kg

* Dimensions: 1400mm x 1600mm x 2300mm

* Radius: <80mm



CNC Glass Drilling Machine for Automobile Glass

CNC Glass Drilling Machine for Automobile Glass

SBT-A4 CNC Glass Drilling Machine for Automobile Glass

Detail Information:

Glass thickness: 4-12mm



Hole diameter: Φ4 – φ50



Moving speed:XY 3-12m/min



X axis moving progress size: 0-1300mm



Y axis moving progress size: 0-1000mm



Concentricy tolerance:±0.3mm

CNC Glass Drilling Machine For Shower Door

CNC Glass Drilling Machine For Shower Door

SBT-A3 CNC Glass Drilling Machine For Shower Door

Detail Information:

Glass thickness: 4-12mm

Hole diameter: Φ4 – φ50

Moving speed:XY 3-12m/min

Max processing glass: 900*2100mm

Min processing glass: 300*1500mm

Concentricy tolerance:±0.3

Our drilling glass machine features: High drilling efficiency, accurate positioning and ease of operation.



Our main glass drilling machines are applied to following areas:



NO.1:  CNC Drilling Machine for Electronic/Household Electrical Appliances Glass



NO.2:  CNC Drilling Machine for Furniture Glass



NO.3:  CNC Drilling Machine for Shower Room Glass



NO.4: CNC Drilling Machine for Automobile Glass



NO.5:  CNC Drilling Machine for Photovoltaic Solar Glass



NO.6:  CNC Drilling Machine for Architectural Glass



NO.7: Other Glass Deep-processing Equipment Which Product According to Order.



We sincerely welcome friends from all over the world, home or abroad, to visit our company, negotiate business with us and create a brilliant future together!

GLASS STRAIGHT BEVELING MACHINE

GLASS STRAIGHT BEVELING MACHINE

SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

 SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

I. General description:

1. Rough grinding, fine grinding, polishing of bevel edge and grinding of bottom edge can be completed at one time.

2The processing speed is adjustable with variator which offers a wide range of speed selection.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Two options: Digital display, PLC.

5. Processing thickness, angle and remaining thickness appears on digital display or touch screen.

II. Technical Specifications:

  1. Processing speed: 0.83-4.1m/min
  2. Min. glass size (mm): 120*120mm
  3. Glass thickness: 3-19mm
  4. Remaining thickness: ≥1.5
  5. Max. width of bevel: 30mm
  6. Bevel degree: 3°-30°
  7. Size: 7800*1250*2550mm
  8. Weight: 4000kg
  9. Power: 16.83kw
GLASS STRAIGHT BEVELLER

GLASS STRAIGHT BEVELLER

SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

 SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

I. General description:

1. Rough grinding, fine grinding, polishing of bevel edge and grinding of bottom edge can be completed at one time.

2The processing speed is adjustable with variator which offers a wide range of speed selection.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Two options: Digital display, PLC.

5. Processing thickness, angle and remaining thickness appears on digital display or touch screen.

II. Technical Specifications:

  1. Processing speed: 0.83-4.1m/min
  2. Min. glass size (mm): 120*120mm
  3. Glass thickness: 3-19mm
  4. Remaining thickness: ≥1.5
  5. Max. width of bevel: 30mm
  6. Bevel degree: 3°-30°
  7. Size: 7800*1250*2550mm
  8. Weight: 4000kg
  9. Power: 16.83kw
GLASS STRAIGHT EDGER

GLASS STRAIGHT EDGER

SBT-ZM8 GLASS STRAIGHT-LINE EDGING MACHINE

SBT-ZM8 GLASS STRAIGHT-LINE EDGING MACHINE

I. General description:

1. SBT-ZM8 is suitable for processing straight-line edge & 45° arrises on glass.

2. Production speed is adjusted by variator.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Different options:



Manual(adjust thickness by handle)      Digital display(adjust thickness by display meter)

5. 8 spindles totally: 4 spindles for the straight-line edge, others for front and back arris respectively.



II. Technical Specifications:

1. Processing glass thickness: 3-25mm

2. Angle of arris: 45°

3. Min.size of glass: 80mm×80mm

4. Processing speed: 1.2-6.0m/min

5. Installed power: 16.73KW

6. Occupation of land: 6.6m×1.4m×2.5m



III. Wheels layout: (From input to output end)



No.

Name

Function

No.1

Diamond wheel

Rough grinding of flat edge

No.2

Resin wheel

Semi-fine grinding of flat edge

No.3

Fine grinding wheel

Fine grinding of flat edge

No.4

polishing wheel

Polishing of flat edge

No.5

Resin wheel

Semi-fine grinding of back arris

No.6

Fine grinding wheel

Fine grinding of back arris

No.7

Resin wheel

Semi-fine grinding of front arris

No.8

Fine grinding wheel

Fine grinding of front arris

GLASS STRAIGHT EDGING MACHINE

GLASS STRAIGHT EDGING MACHINE

SBT-ZM8 GLASS STRAIGHT-LINE EDGING MACHINE

SBT-ZM8 GLASS STRAIGHT-LINE EDGING MACHINE

I. General description:

1. SBT-ZM8 is suitable for processing straight-line edge & 45° arrises on glass.

2. Production speed is adjusted by variator.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Different options:



Manual(adjust thickness by handle)      Digital display(adjust thickness by display meter)

5. 8 spindles totally: 4 spindles for the straight-line edge, others for front and back arris respectively.



II. Technical Specifications:

1. Processing glass thickness: 3-25mm

2. Angle of arris: 45°

3. Min.size of glass: 80mm×80mm

4. Processing speed: 1.2-6.0m/min

5. Installed power: 16.73KW

6. Occupation of land: 6.6m×1.4m×2.5m



III. Wheels layout: (From input to output end)



No.

Name

Function

No.1

Diamond wheel

Rough grinding of flat edge

No.2

Resin wheel

Semi-fine grinding of flat edge

No.3

Fine grinding wheel

Fine grinding of flat edge

No.4

polishing wheel

Polishing of flat edge

No.5

Resin wheel

Semi-fine grinding of back arris

No.6

Fine grinding wheel

Fine grinding of back arris

No.7

Resin wheel

Semi-fine grinding of front arris

No.8

Fine grinding wheel

Fine grinding of front arris

GLASS STRAIGHT-LINE BEVELING MACHINE

GLASS STRAIGHT-LINE BEVELING MACHINE

SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

 SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

I. General description:

1. Rough grinding, fine grinding, polishing of bevel edge and grinding of bottom edge can be completed at one time.

2The processing speed is adjustable with variator which offers a wide range of speed selection.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Two options: Digital display, PLC.

5. Processing thickness, angle and remaining thickness appears on digital display or touch screen.

II. Technical Specifications:

  1. Processing speed: 0.83-4.1m/min
  2. Min. glass size (mm): 120*120mm
  3. Glass thickness: 3-19mm
  4. Remaining thickness: ≥1.5
  5. Max. width of bevel: 30mm
  6. Bevel degree: 3°-30°
  7. Size: 7800*1250*2550mm
  8. Weight: 4000kg
  9. Power: 16.83kw
GLASS STRAIGHT-LINE BEVELLER

GLASS STRAIGHT-LINE BEVELLER

SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

 SBT-XM251 GLASS STRAIGHT-LINE BEVELING MACHINE

I. General description:

1. Rough grinding, fine grinding, polishing of bevel edge and grinding of bottom edge can be completed at one time.

2The processing speed is adjustable with variator which offers a wide range of speed selection.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Two options: Digital display, PLC.

5. Processing thickness, angle and remaining thickness appears on digital display or touch screen.

II. Technical Specifications:

  1. Processing speed: 0.83-4.1m/min
  2. Min. glass size (mm): 120*120mm
  3. Glass thickness: 3-19mm
  4. Remaining thickness: ≥1.5
  5. Max. width of bevel: 30mm
  6. Bevel degree: 3°-30°
  7. Size: 7800*1250*2550mm
  8. Weight: 4000kg
  9. Power: 16.83kw
SBT-ZM8 GLASS STRAIGHT EDGER

SBT-ZM8 GLASS STRAIGHT EDGER

SBT-ZM8 GLASS STRAIGHT-LINE EDGING MACHINE

SBT-ZM8 GLASS STRAIGHT-LINE EDGING MACHINE

I. General description:

1. SBT-ZM8 is suitable for processing straight-line edge & 45° arrises on glass.

2. Production speed is adjusted by variator.

3. Input and output conveyors adopt timing belt which can improve the stability of transmission.

4. Different options:



Manual(adjust thickness by handle)      Digital display(adjust thickness by display meter)

5. 8 spindles totally: 4 spindles for the straight-line edge, others for front and back arris respectively.



II. Technical Specifications:

1. Processing glass thickness: 3-25mm

2. Angle of arris: 45°

3. Min.size of glass: 80mm×80mm

4. Processing speed: 1.2-6.0m/min

5. Installed power: 16.73KW

6. Occupation of land: 6.6m×1.4m×2.5m



III. Wheels layout: (From input to output end)



No.

Name

Function

No.1

Diamond wheel

Rough grinding of flat edge

No.2

Resin wheel

Semi-fine grinding of flat edge

No.3

Fine grinding wheel

Fine grinding of flat edge

No.4

polishing wheel

Polishing of flat edge

No.5

Resin wheel

Semi-fine grinding of back arris

No.6

Fine grinding wheel

Fine grinding of back arris

No.7

Resin wheel

Semi-fine grinding of front arris

No.8

Fine grinding wheel

Fine grinding of front arris

Contact Us

  • HI-TECH INDUSTRIAL ZONE,JINAN,CHINA
  • +86-531-62326877
